Successfully Heating Retaining Rings for Winding Repairs

Retaining rings are essential for securing winding components and preventing damage. It is crucial to choose the right Induction heating equipment to ensure heating rates. Proper installation techniques are also necessary for the longevity and reliability of the repaired winding. To ensure the success of your winding repairs, it is important to work with a knowledgeable and experienced company such as Thermo International.

How Does Induction Heating Work for Retaining Rings?

The advanced induction heating machine from Thermo International used for retaining rings utilizes electromagnetic induction to generate heat. By passing a high-frequency alternating current through a coil, a magnetic field is created. This magnetic field induces eddy currents in the retaining ring, resulting in heat generation. The heat causes theretaining ring to expand, facilitating easier removal or installation.

The benefits of using a 120kW or 200kW induction heating machine are numerous. Its power allows for efficient heating of large components, reducing downtime and increasing productivity. With precise application of the coils and technician training, it ensures consistent and uniform heating. These machines are versatile for many applications, it is suitable for various additional industries.

What setsThermo International’s induction heating machines to stand out include their advanced technology and expertise in heating retaining rings. Their techniques ensure precise and uniform heating during winding repairs, minimizing the risk of damage.

To successfully heat retaining rings for winding repairs, it is important to consider the correct heating options. Prioritize safety by wearing protective gear and working in a well-ventilated area. Proper temperature control and coil set up is crucial to prevent damage to the winding and surrounding components. Use appropriate tools and techniques when removing and reinstalling the retaining rings after heating. To ensure effectiveness, measure the resistance and performance of the winding as a test.

During the heating process, there are common challenges that can arise. One such challenge is the risk of the blocking, insulation and windings if the heating is not done properly. It is crucial to use the correct temperature settings to avoid causing damage to the winding or other parts of the equipment. Uneven heating can result in uneven expansion and contraction, leading to alignment issues.

Furthermore, overheating can weaken the material of the retaining ring, compromising its usefulness. To ensure consistent and successful heating, it is important to use appropriate heating tools such as Thermo International’s induction heating system.

The duration of the heating process for retaining rings can vary depending on the specific retaining ring.It can range from 10 minutes to just over an hour, influenced by factors such as the size and material ofthe retaining ring. Thermo International’s technicians can provide onsite assistance for utilizing theproper coil application and heating duration.

Thermo international’s induction heating machines heat all the bolts on a turbine and with a simpletap change the same machine adapts to large retaining rings for “rings off” inspections orrepairs. Our robust and portable machines boast the most advanced transistor firing systemsand latest color touch screen technology allowing the user a full understanding of the machineand the process.

Regular cleaning and inspection of your induction heating machine is crucial for maintaining optimalperformance. Thermo International can provide maintenance and servicing to ensure longevity. Keepthe machine in a dry environment in an area that does not freeze to prevent any potential damage.

Additionally, make sure to use the correct water supply and avoid overloading the machine when in use,as it can lead to inefficiency or even damage. Lastly, the company can train operators on proper usageand handling of the induction heating machine to maximize its potential.

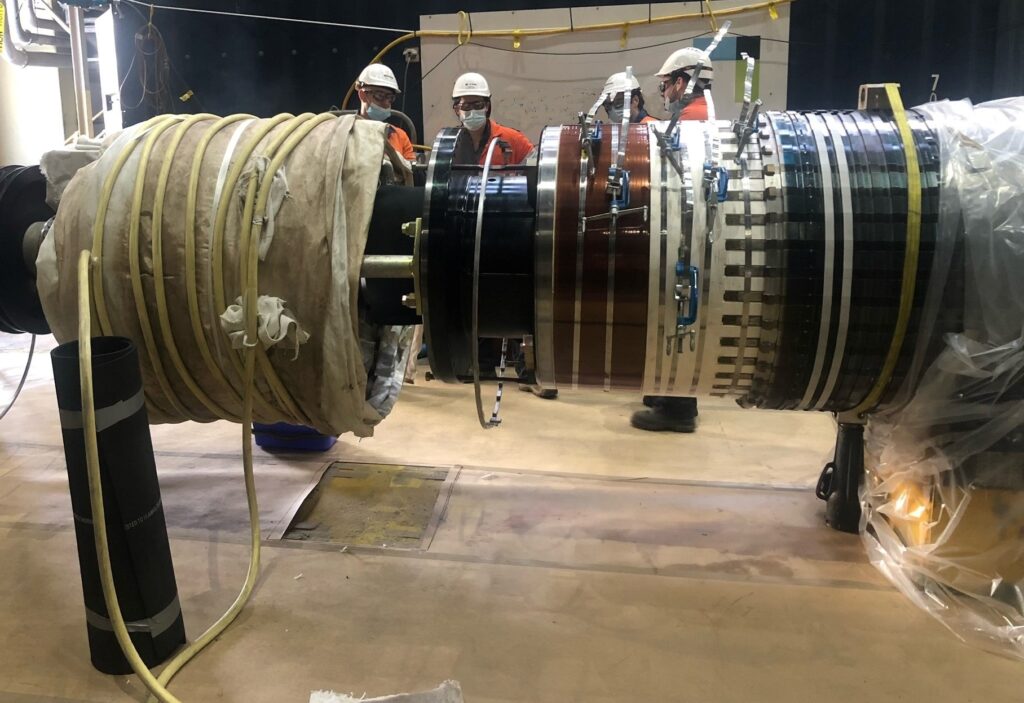

Thermo International’s portable induction heating supplies can be found in power plants around the world. Retaining Rings are easily heated for removal or installation. The flexible coils allow the operators to adjust the heat pattern accommodating for the thermal loss of the fit area or to allow tooling access to retaining clips or other locking devices.

These machines can easily changefrom retaining rings to turbine bolts making it the most versatile induction heating machine on the market. Its ability to run on 380, 400,415, 480 or 575 primary volts without changing resistors or jumpers makes it truly a machine for any country on any voltage.

It’s no wonder these machines are quickly becoming the preferred machine for these types of projects.
